GD&T
-
system for setting communicatating tolerances
-
uses symbols and notatinos
-
Describes
-
nominal geometry of parts
-
Accapteble range in size, shap direcetion and position of each feature
-
How features can deviate in relation to each within acceptable limits
-
Standards
Nomenclature
-
Basic or nominal size:
-
the ttheoretical dimenitions of a feature
Clearance and interference fits
- suppose we have a max hole diameter and a minimum hole diameter
- and we have a maximum shaft diameter and a minimum shaft diameter
-
calculating the clearance
-
- maximum clearance= max hole diameter - min shaft diameter
-
- minimuma clearance = min hole diameter - max shaft diameter
-
Fit chart
-
Shaft hole
- Shaft is lowercase
- hole is uppercase
-
A-P
- A is the most lose
- P is the most tight
-
6-9
- 6 is most accurate
- 9 is most rough
Feature control frame
-

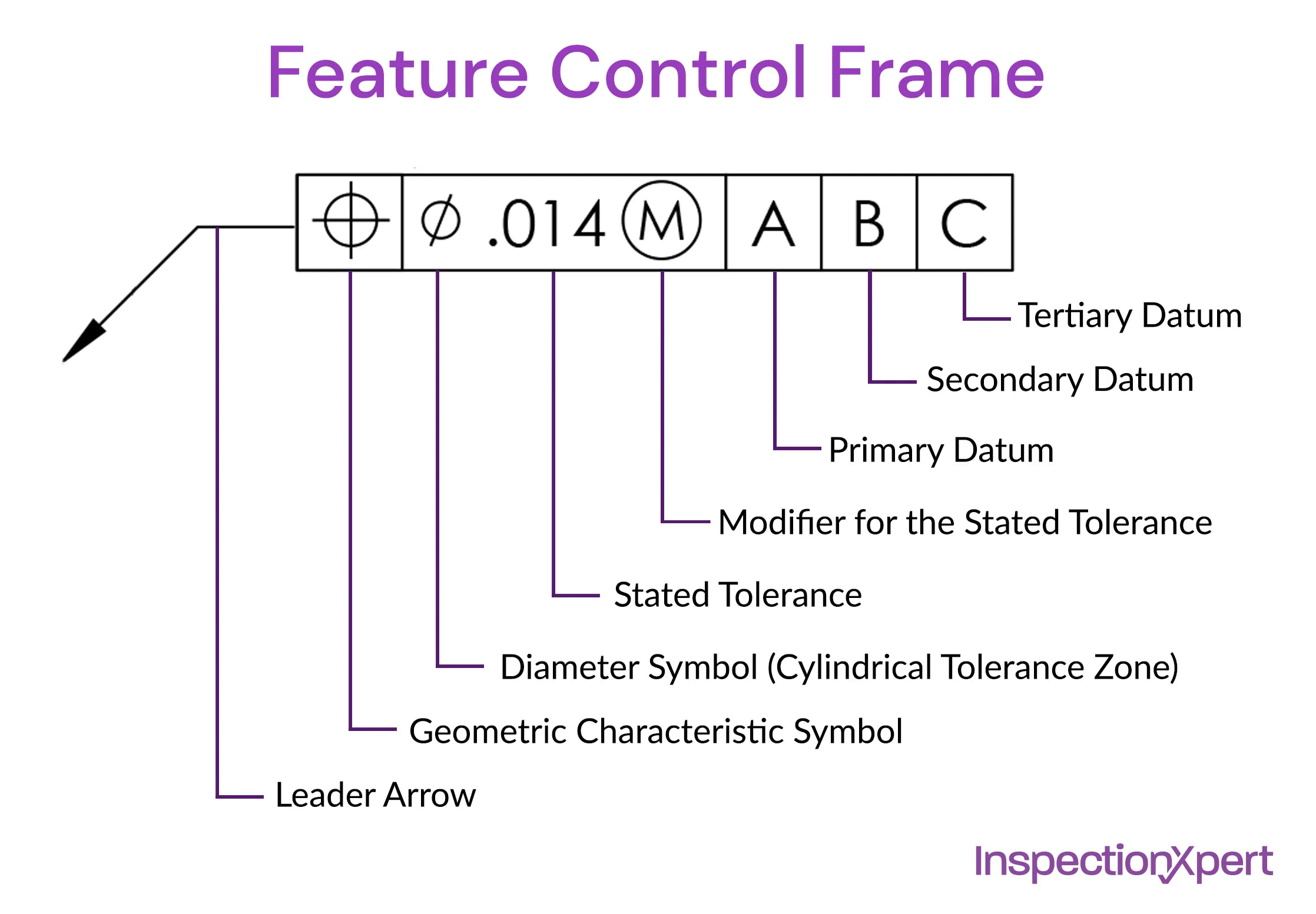

Parts of the feature control frame
-
Geometric tolerancing symbols
