Lab 7

Sep 12, 20243 min read

Lab 7 for ENSC 180

Code:

% Load the signal
load handel.mat; % Load the "handel.mat" signal
y = y(1:25600); % Work with only the first 25600 samples

% Plot the original signal
subplot(3, 1, 1); % Arrange plots
plot(y);
title('Original Signal');
xlabel('Sample Index');
ylabel('Amplitude');

% Play the original signal
sound(y, Fs); % Play original sound
pause(length(y)/Fs + 1); % Wait for the sound to finish plus a little extra

% Time Domain Threshold
T = 0.1; % Example threshold value
y2 = y; % Make a copy of y for time domain processing
y2(abs(y2) < T) = 0; % Perform thresholding

% DCT Domain Processing
M = 64; % Define the block size for the DCT
C = dct(eye(M)); % Create the DCT matrix
y3 = zeros(size(y)); % Initialize y3 for DCT domain processing
for i = 0:(length(y)/M)-1
    block = y(1+i*M:(i+1)*M); % Extract block
    z = C * block; % Transform to DCT domain
    z(abs(z) < T) = 0; % Perform thresholding
    y3(1+i*M:(i+1)*M) = C' * z; % Transform back to time domain
end

% Plot time domain processed signal
subplot(3, 1, 2); % Arrange plots
plot(y2);
title(['Time Domain Processed Signal with Threshold ', num2str(T)]);
xlabel('Sample Index');
ylabel('Amplitude');

% Plot DCT domain processed signal
subplot(3, 1, 3); % Arrange plots
plot(y3);
title(['DCT Domain Processed Signal with Threshold ', num2str(T)]);
xlabel('Sample Index');
ylabel('Amplitude');

% Play the processed signals
disp('Playing time domain processed signal...');
sound(y2, Fs); % Play time domain processed sound
pause(length(y2)/Fs + 1); % Wait for the sound to finish plus a little extra

disp('Playing DCT domain processed signal...');
sound(y3, Fs); % Play DCT domain processed sound
pause(length(y3)/Fs + 1); % Wait for the sound to finish plus a little extra

% Calculate and display Mean Absolute Error (MAE)
time_domain_MAE = mean(abs(y2 - y));
dct_domain_MAE = mean(abs(y3 - y));
fprintf('Time Domain MAE: %f\n', time_domain_MAE);
fprintf('DCT Domain MAE: %f\n', dct_domain_MAE);

Output:

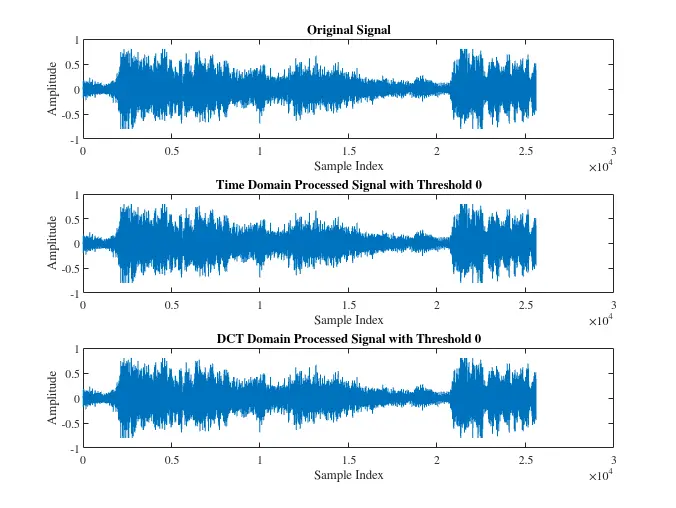

T = 0

Playing time domain processed signal...

Playing DCT domain processed signal...

Time Domain MAE: 0.000000
DCT Domain MAE: 0.000000

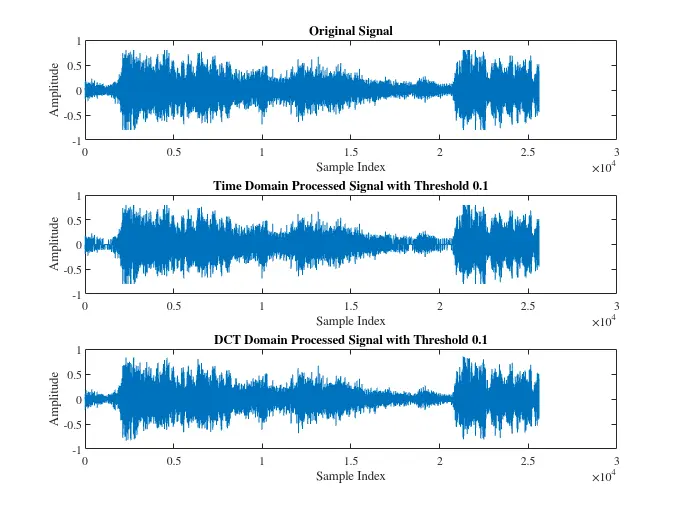

T = 0.1

Playing time domain processed signal...

Playing DCT domain processed signal...

Time Domain MAE: 0.021395
DCT Domain MAE: 0.027969

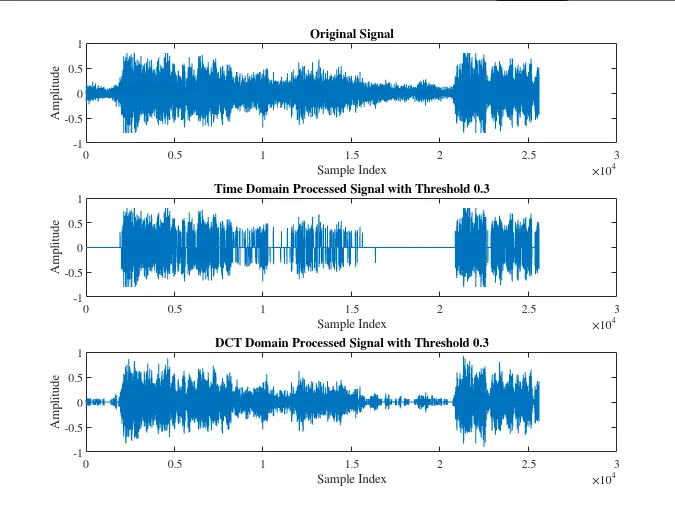

T = 0.3

Playing time domain processed signal...

Playing DCT domain processed signal...

Time Domain MAE: 0.089035
DCT Domain MAE: 0.064208

Explanation:

  • Loads handel.mat audio file.
  • Adjusts audio clip length.
  • Verifies variables’ successful loading.
  • Plots original audio waveform.
  • Plays original audio clip.
  • Applies time domain threshold.
  • Thresholds blocks in DCT domain.
  • Recalculates blocks to time domain.
  • Plots thresholded time domain signal.
  • Plots thresholded DCT domain signal.
  • Plays time domain processed audio.
  • Plays DCT domain processed audio.
  • Computes Mean Absolute Error (MAE).
  • Prints time domain MAE.
  • Prints DCT domain MAE.

(T) of 0, 0.1, and 0.3, a value of 0.1 generally strikes a balance between preserving audio quality and reducing noise without overly compromising signal integrity.
