Node voltage Method

what is it

• A method to do circuit analysis using the node voltages

Step 1

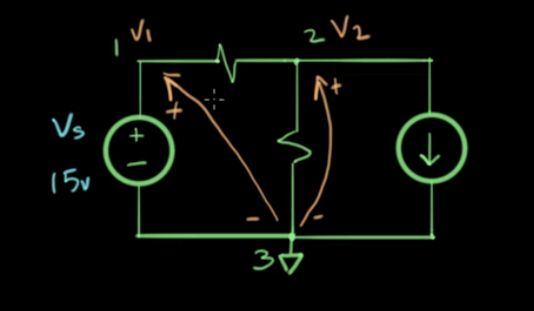

• Pick a reference node

  •
  • 3 is the chosen node voltage for the reference node

Step 2

• then label the node voltages for each one

Step 3

• solve easy nodes

Step 4

• Write KCL Kirchhoff’s laws equations

Step 5

• Solve
